Adobe Illustrator JSX script demo using BridgeTalk to communicate with palette window.jsx

README.md

@@ -1,2 +1,16 @@
 # Adobe_Illustrator_Scripts
 Some powerfull JSX scripts for extending Adobe Illustrator
+This is a collection of JS scripts for Adobe Illustrator. All scripts created by me, sometimes using parts of other authors’code.
+
+

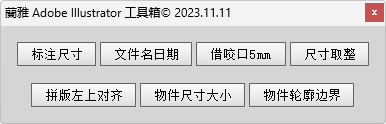

+## [蘭雅 Adobe Illustrator 工具箱© 2023.11.11](./jsx/LanyaAITools.jsx)
+[![](./img/lyjsx.png)](./jsx/LanyaAITools.jsx)
+
+
+## [Adobe Illustrator JSX script demo using BridgeTalk to communicate with palette window.jsx](./jsx/Adobe%20Illustrator%20JSX%20script%20demo%20using%20BridgeTalk%20to%20communicate%20with%20palette%20window.jsx)
+
+
+
+## Other Adobe Illustrator Scripts
+- https://github.com/creold/illustrator-scripts
+- https://github.com/Silly-V/Adobe-Illustrator

jsx/Adobe Illustrator JSX script demo using BridgeTalk to communicate with palette window.jsx

@@ -0,0 +1,30 @@
+#target illustrator
+#targetengine main
+var vs = "illustrator-" + app.version.substr(0, 2);
+ShowWindow();
+function ShowWindow() {
+  var myDialog = new Window("palette", "My dialog");
+  var bt = myDialog.add("button", undefined, "标注尺寸");
+
+  bt.onClick = function () { // 标注尺寸.jsx
+    make_size();
+  }
+
+  myDialog.show();
+}
+//这里不要动
+function buildMsg(code) {
+  try {
+    var bt = new BridgeTalk;
+    bt.target = vs;
+    var msg = code;
+    bt.body = msg;
+    bt.send();
+  } catch (e) { }
+}
+
+// 标注尺寸.jsx
+function make_size() {
+  var swap1Message = "@JSXBIN@[email protected]@MyBbyBnACMIbyBn0ABZJnAEXzHjUjPiGjJjYjFjEBfEXzFjSjPjVjOjECfjzEiNjBjUjIDfRBCzBhKEVzEjTjJjajFFfAjzCjNjNGfnnffRBFdAffABF40BhAB0AzKjGjPjSjNjBjUiTjJjajFHAKMTbyBn0AHJUnASzHjUjFjYjUiSjFjGIAEXzDjBjEjEJfXzKjUjFjYjUiGjSjBjNjFjTKfjzGjEjPjDiSjFjGLfnfnftJVnABXzIjDjPjOjUjFjOjUjTMfVIfAVzEjUjFjYjUNfBnfJWnABXFfXzTjDjIjBjSjBjDjUjFjSiBjUjUjSjJjCjVjUjFjTOfXzJjUjFjYjUiSjBjOjHjFPfVIfAjzKjNjZiGjPjOjUiTjJjajFQfnfJXnABXzIjUjFjYjUiGjPjOjURfXOfXPfVIfAjzGjNjZiGjPjOjUSfnfJYnABXzJjGjJjMjMiDjPjMjPjSTfXOfXPfVIfAjzHjDjNjZjLiSjFjEUfnfJZnABXzDjUjPjQVfVIfACzBhLWjzBjZXfCzBhPYnjGfdPnnnnfJganABXzEjMjFjGjUZfVIfACWjzBjYgafCYnjGfdKnnnnfACN40BhAI40BiABBAzJjXjSjJjUjFiUjFjYjUgbAgbKJBnASLyBjzOjBjDjUjJjWjFiEjPjDjVjNjFjOjUgcfnftJCnASGyBnd8henJkThenJkTmWhfftJDnASSyBEXzJjHjFjUiCjZiOjBjNjFgdfjzJjUjFjYjUiGjPjOjUjTgefRBFeOiNjJjDjSjPjTjPjGjUiZjBiIjFjJffnftJEnASQyBndYftJNnASUyBEjzJiDiNiZiLiDjPjMjPjSgffntnftJOnABXzEjDjZjBjOhAfVUfyBndAfJPnABXzHjNjBjHjFjOjUjBhBfVUfyBndjEfJQnABXzGjZjFjMjMjPjXhCfVUfyBndjEfJRnABXzFjCjMjBjDjLhDfVUfyBndAfOgebgfn0ACJgfnASzLjNjZiTjFjMjFjDjUjJjPjOhEyBXzJjTjFjMjFjDjUjJjPjOhFfVLfyBnftahAbhBn0AFJhBnASzBjThGyBQzAhHfVhEfyBVzBjJhIfyBnftJhCnASgayBXZfVhGfyBnffJyhCnASXyBXVfVhGfyBnffJhDnASzDjTjUjShJyBCWCWCWEjHfRBXzFjXjJjEjUjIhKfVhGfyBffnneBjYEjHfRBXzGjIjFjJjHjIjUhLfVhGfyBffnnnneCjNjNnftJhEnAEjgbfRBVhJfyBffAVhIfyBAXzGjMjFjOjHjUjIhMfVhEfyBByBzBhchNACzBhehOXhMfXhFfVLfyBnndAnALhI4I0AiAhE4H0AiAga4E0AiAX4F0AiAhG4J0AiAL40BiAhJ4K0AiAG4B0AiAS4C0AiAQ4D0AiAU4G0AiAALAhHByB";
+  buildMsg(swap1Message);
+}

jsx/LanyaAITools.jsx

@@ -0,0 +1,324 @@
+#target illustrator
+
+// 创建面板   初始版，使用 dialog
+var panel = new Window("dialog", "蘭雅 Adobe Illustrator 工具箱© 2023.11.11");
+// var panel = new Window("palette", "蘭雅 Adobe Illustrator 工具箱© 2023.11.11");
+
+with (panel) {
+  // 创建按钮组
+  var BtGroup1 = panel.add("group");
+  var BtGroup2 = panel.add("group");
+
+  // 设置按钮组为水平布局
+  BtGroup1.orientation = "row";
+  BtGroup2.orientation = "row";
+
+  // 添加按钮
+  var button1 = BtGroup1.add("button", undefined, "标注尺寸");
+  var button2 = BtGroup1.add("button", undefined, "文件名日期");
+  var button3 = BtGroup1.add("button", undefined, "借咬口5mm");
+  var button4 = BtGroup1.add("button", undefined, "尺寸取整");
+
+  var button5 = BtGroup2.add("button", undefined, "拼版左上对齐");
+  var button6 = BtGroup2.add("button", undefined, "物件尺寸大小");
+  var button7 = BtGroup2.add("button", undefined, "物件轮廓边界");
+
+  // 设置按钮组的边缘间距  设置按钮间距
+  BtGroup1.spacing = 2; // 调整按钮之间的间距
+  BtGroup2.spacing = 2;
+
+  // 按钮点击事件处理程序
+  button1.onClick = function () {
+    make_size(); panel.close();
+  };
+
+  button2.onClick = function () {
+    filename_date(); panel.close();
+  };
+
+  button3.onClick = function () {
+    mark_5mm(); panel.close();
+  };
+
+  button4.onClick = function () {
+    size_to_integer(); panel.close();
+  };
+
+  button5.onClick = function () {
+    replace_align_position(); panel.close();
+  };
+
+  button6.onClick = function () {
+    size_by_width_height(); panel.close();
+  };
+
+  button7.onClick = function () {
+    size_by_controlBounds(); panel.close();
+  };
+}
+// 显示面板
+panel.show();
+
+//==================================================================================//
+// 蘭雅 Adobe Illustrator 工具箱© 2023.11.11  各个按钮功能模块
+//==================================================================================//
+// 标注尺寸
+function make_size() {
+  // 定义当前激活文档
+  var docRef = activeDocument;
+  var mm = 25.4 / 72;  // pt 和 mm 转换系数
+  var myFont = textFonts.getByName("MicrosoftYaHei");
+  var myFontSize = 24;
+  var x, y;
+
+  // 格式化尺寸为 mm 取整数
+  function formatSize(size) {
+    return Math.round(size * mm).toFixed(0);
+  }
+
+  // 设置填充颜色为CMYK红色 (0, 100, 100, 0)
+  var cmykRed = new CMYKColor();
+  cmykRed.cyan = 0;
+  cmykRed.magenta = 100;
+  cmykRed.yellow = 100;
+  cmykRed.black = 0;
+
+  function writeText(text) {
+    var textRef = docRef.textFrames.add();    // 建立文本
+    textRef.contents = text;
+    textRef.textRange.characterAttributes.size = myFontSize;   // 设置字体尺寸
+    textRef.textRange.characterAttributes.textFont = myFont;   // 设置字体名称
+    textRef.textRange.characterAttributes.fillColor = cmykRed;   // 设置颜色
+    textRef.top = y + 15 / mm;
+    textRef.left = x + 10 / mm;
+  }
+
+  // 遍历选择的物件标注尺寸
+  if (docRef.selection.length > 0) {
+    var mySelection = docRef.selection;
+    for (var i = 0; i < mySelection.length; i++) {
+      var s = mySelection[i]
+      x = s.left; y = s.top
+      var str = formatSize(s.width) + "x" + formatSize(s.height) + "mm";
+      writeText(str)
+    }
+  }
+
+}
+
+// 文件名日期
+function filename_date() {
+  // 获取当前时间
+  function getdate() {
+    var d = new Date(), month = '' + (d.getMonth() + 1),
+      day = '' + d.getDate(), year = d.getFullYear();
+    if (month.length < 2) month = '0' + month;
+    if (day.length < 2) day = '0' + day;
+    return [year, month, day].join('-');
+  }
+
+  // 获取 AI文档名称
+  var docRef = activeDocument;
+  var str = docRef.name;
+  str = str + "     " + getdate();
+
+  // alert("本脚本建立一个文本:\n" + str);
+
+  // 文档中建立一个新文本
+  // var textRef = docRef.textFrames.add();
+  // textRef.top = 100;
+  // textRef.left = 200;
+  // textRef.contents = str;
+
+  var mm = 25.4 / 72;  // pt 和 mm 转换系数
+
+  var base = new Array();
+  base = docRef.rulerOrigin;    // 画板标尺原点，相对于画板的左上角
+  // alert("画板标尺原点mm  x:" + base[0] * mm +" y:" + base[1] * mm + "\n画板大小mm 宽:" + docRef.width * mm +"  高:" + docRef.height * mm);
+
+  var pw = 0;
+  var ph = 0;
+  var x = base[0];    // 画板左下角 x 坐标
+  var y = - base[1];  // 画板左下角 y 坐标
+  var myFont = textFonts.getByName("MicrosoftYaHei");
+  var myFontSize = 8;
+
+  pw = docRef.width;  //  文档宽
+  ph = docRef.height; //  文档高
+  x = pw / 2 - x;     //  转换x坐标: 画板中下x
+
+  function filenameDate() {
+    var textRef = docRef.textFrames.add();    // 建立文本
+    textRef.contents = str;                   // 填充文本字符串:   AI文档名称 + 时间
+    textRef.textRange.characterAttributes.size = myFontSize;   // 设置字体尺寸
+    textRef.textRange.characterAttributes.textFont = myFont;   // 设置字体名称
+    textRef.textRange.characterAttributes.fillColor = docRef.swatches[1].color;   // 设置拼版色
+    textRef.top = y + 7.4;    // 画板底向上偏移
+    textRef.left = x - textRef.width - 10;   // 画板x中，偏移文本宽和间隔宽
+  }
+
+  filenameDate();
+
+}
+
+// 借咬口5mm
+function mark_5mm() {
+  // 获取 AI文档名称
+  var docRef = activeDocument;
+  var str = docRef.name;
+  str = "借咬口5mm"
+  var mm = 25.4 / 72;  // pt 和 mm 转换系数
+
+  var base = new Array();
+  base = docRef.rulerOrigin;    // 画板标尺原点，相对于画板的左上角
+
+  var pw = 0;
+  var ph = 0;
+  var x = base[0];    // 画板左下角 x 坐标
+  var y = - base[1];  // 画板左下角 y 坐标
+  var myFont = textFonts.getByName("MicrosoftYaHei");
+  var myFontSize = 64;
+
+  pw = docRef.width;  //  文档宽
+  ph = docRef.height; //  文档高
+  x = pw / 2 - x;     //  转换x坐标: 画板中下x
+
+
+  // 设置填充颜色为CMYK红色 (0, 100, 100, 0)
+  var cmykRed = new CMYKColor();
+  cmykRed.cyan = 0;
+  cmykRed.magenta = 100;
+  cmykRed.yellow = 100;
+  cmykRed.black = 0;
+
+  function writeText() {
+    var textRef = docRef.textFrames.add();    // 建立文本
+    textRef.contents = str;                   // 填充文本字符串:   AI文档名称 + 时间
+    textRef.textRange.characterAttributes.size = myFontSize;   // 设置字体尺寸
+    textRef.textRange.characterAttributes.textFont = myFont;   // 设置字体名称
+    textRef.textRange.characterAttributes.fillColor = cmykRed  // docRef.swatches[4].color;  // 从颜色版取色简单，但是结果不确定
+    textRef.top = y - 15;    // 画板底向上偏移
+    textRef.left = x - textRef.width / 2;   // 画板x中，偏移文本宽和间隔宽
+  }
+  writeText();
+}
+
+// 尺寸取整
+function size_to_integer() {
+  // 定义当前激活文档
+  var doc = activeDocument;
+  var mm = 25.4 / 72;  // pt 和 mm 转换系数
+
+  // 格式化尺寸为 mm 取整数
+  function formatSize(size) {
+    return Math.round(size * mm).toFixed(0);
+  }
+
+  // 遍历选择的物件尺寸取整
+  if (doc.selection.length > 0) {
+    var src = doc.selection;
+    for (var i = 0; i < src.length; i++) {
+      var s = src[i]
+      s.width = formatSize(s.width) / mm
+      s.height = formatSize(s.height) / mm
+    }
+  }
+
+}
+
+// 物件轮廓边界
+function size_by_controlBounds() {
+  var docRef = activeDocument;
+  // 判断选择物件2个以上
+  if (docRef.selection.length > 1) {
+    // 定义选择物件
+    mySelection = docRef.selection;
+
+    // 最上层物件为替换源
+    var sourceObj = docRef.selection[0];
+
+    // 定义数组保存选择物件controlBounds
+    var BoundsArray = new Array();
+
+    for (var i = 0; i < mySelection.length; i++) {
+      // PageItem.position  获得物件群组左上角坐标
+      var sel_Bounds = mySelection[i].controlBounds;
+      BoundsArray.push(sel_Bounds);
+    }
+
+    // PageItem.duplicate 复制对象, 需要一个相对对象定位
+    var newGroup = sourceObj.parent.groupItems.add();
+    for (var i = 1; i < BoundsArray.length; i++) {
+
+      var width = BoundsArray[i][2] - BoundsArray[i][0];
+      var height = BoundsArray[i][1] - BoundsArray[i][3];
+      sourceObj.width = width;
+      sourceObj.height = height;
+
+      // 移动源文件到目的物件左上角对齐
+      var sel_xy = new Array(BoundsArray[i][0], BoundsArray[i][1]);
+      sourceObj.position = sel_xy;
+      sourceObj.duplicate(newGroup, ElementPlacement.PLACEATEND);
+    }
+    sourceObj.remove();
+  }
+}
+
+// 物件尺寸大小
+function size_by_width_height() {
+  var doc = activeDocument;
+  // 判断选择物件2个以上
+  if (doc.selection.length > 1) {
+    // 定义选择物件
+    src = doc.selection;
+    var taget = doc.selection[0];
+
+    // PageItem.position  获得物件群组左上角坐标
+    // PageItem.duplicate 复制对象, 需要一个相对对象定位
+    // 修改taget大小, 移动到src物件左上角对齐, 复制副本
+    var newGroup = taget.parent.groupItems.add();
+    for (var i = 1; i < src.length; i++) {
+      var sel_xy = src[i].position;
+
+      taget.width = src[i].width;
+      taget.height = src[i].height;
+
+      taget.position = sel_xy;
+      taget.duplicate(newGroup, ElementPlacement.PLACEATEND);
+    }
+    taget.remove();
+  }
+}
+
+// 拼版左上对齐
+function replace_align_position() {
+  var docRef = activeDocument;
+  // 判断选择物件2个以上
+  if (docRef.selection.length > 1) {
+    // 定义选择物件
+    mySelection = docRef.selection;
+
+    // 最上层物件为替换源
+    var sourceObj = docRef.selection[0];
+
+    // 定义数组用来保存选择物件的左上角坐标
+    var alterObjectArray = new Array();
+    for (var i = 0; i < mySelection.length; i++) {
+      // PageItem.position  获得物件群组左上角坐标
+      var sel_xy = mySelection[i].position
+      alterObjectArray.push(sel_xy);
+    }
+    // 删除用来定位的下层物件
+    for (var i = 1; i < mySelection.length; i++) {
+      mySelection[i].remove();
+    }
+    // PageItem.duplicate 复制对象, 需要一个相对对象定位
+    var newGroup = sourceObj.parent.groupItems.add();
+    for (var i = 1; i < alterObjectArray.length; i++) {
+      sourceObj.position = alterObjectArray[i];     // 设置替换物的左上角位置，达到替换目的
+      sourceObj.duplicate(newGroup, ElementPlacement.PLACEATEND);
+    }
+    sourceObj.remove();
+
+  }
+}
